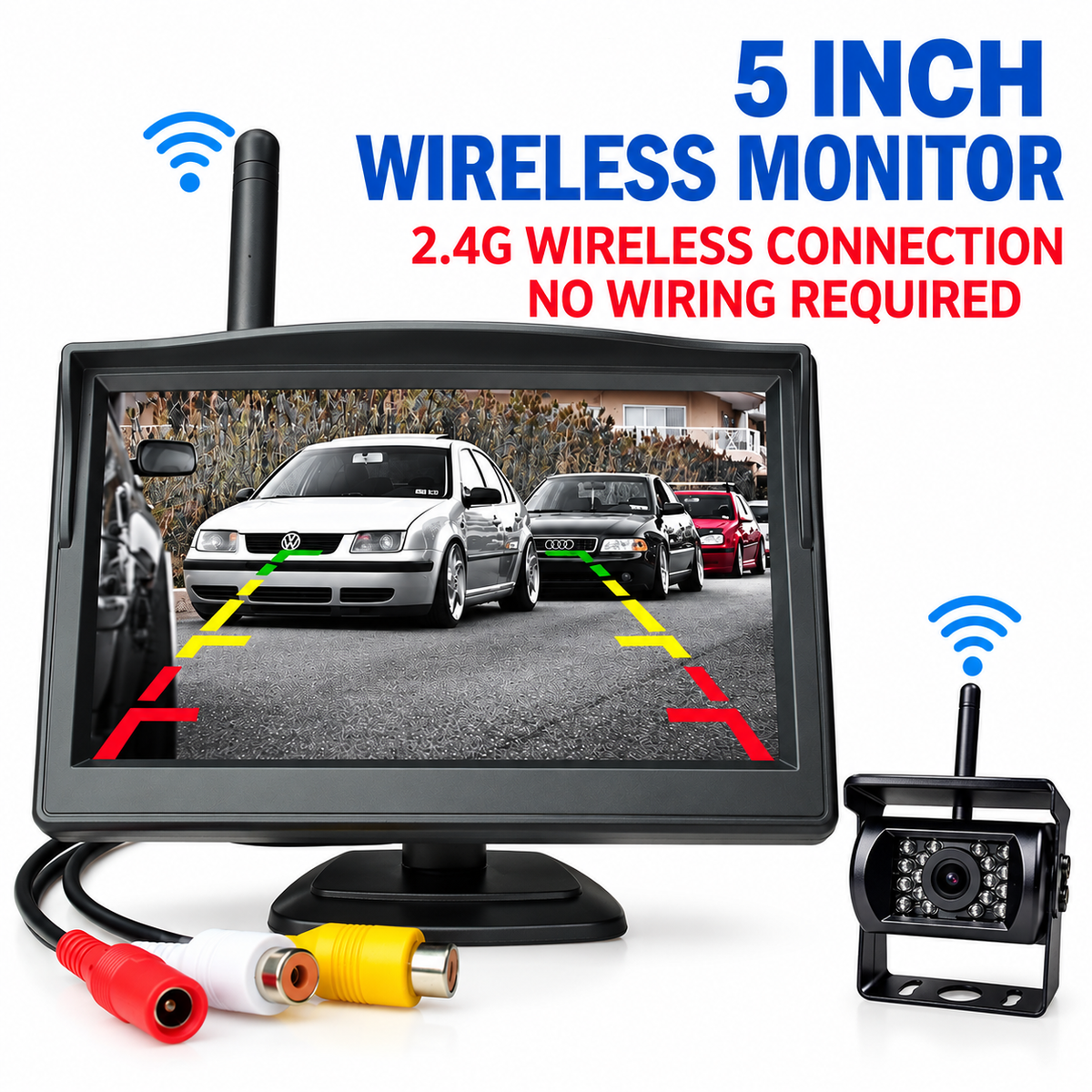

5-Inch Wireless Monitor & Rear View Camera System

A wireless vehicle camera system featuring a 5-inch display and wireless camera, designed for buses, trucks, RVs and other large vehicles. The system uses 2.4GHz wireless transmission with an open-air transmission distance of up to approximately 100 metres, providing convenient real-time rear-view monitoring.
Key Features
- 5-Inch Wireless Display – Compact screen for clear real-time video monitoring.
- 2.4GHz Wireless Transmission – No video cable required between the monitor and camera.
- Up to 100m Transmission Range – Suitable for larger vehicles and longer-distance applications.
- Button & Remote Control – Supports convenient operation using buttons or a remote control.
- High-Resolution Display – Supports standard 480 × 272 and high-resolution 800 × 480.
- Wide Voltage Compatibility – Monitor supports 12V–24V, while the camera supports 12V–35V.
- 18 Infrared LEDs – Provides improved visibility in low-light conditions.
- PAL/NTSC Support – Compatible with both video systems.
- Weather & Temperature Resistant – Designed to operate in demanding vehicle environments.

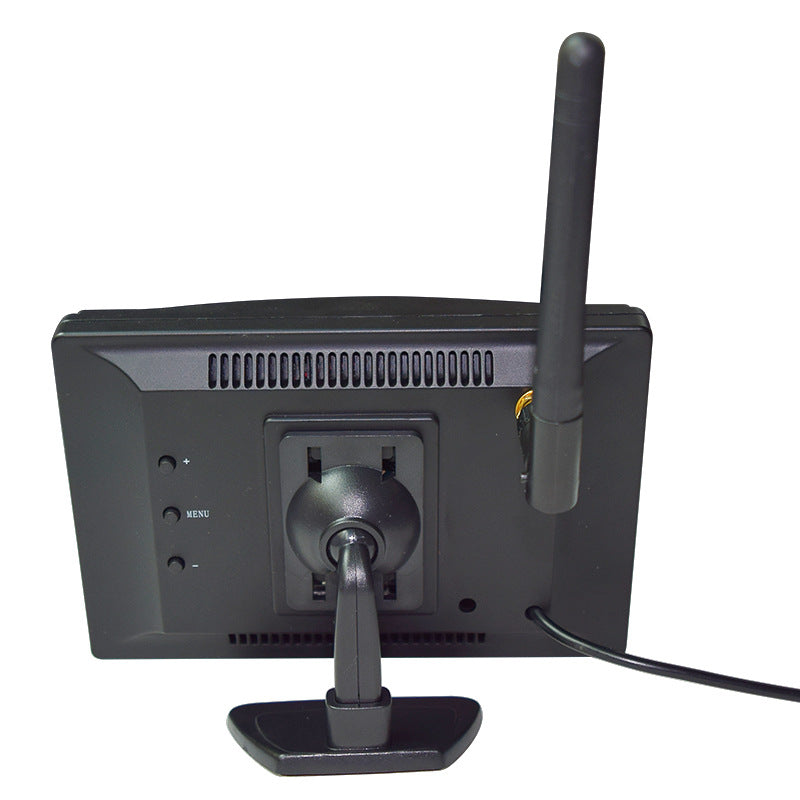

5-Inch Wireless Monitor Specifications
Specification：Details
Display：5-Inch Wireless Monitor
Resolution：Standard: 480 × 272 / High: 800 × 480
Wireless Frequency：2.4GHz
Transmission Range：Approx. 100m in open air
Control：Buttons & Remote Control
Brightness：300 cd/m²
Contrast Ratio：350:1
Power：Approx. 3W
Voltage：12V–24V

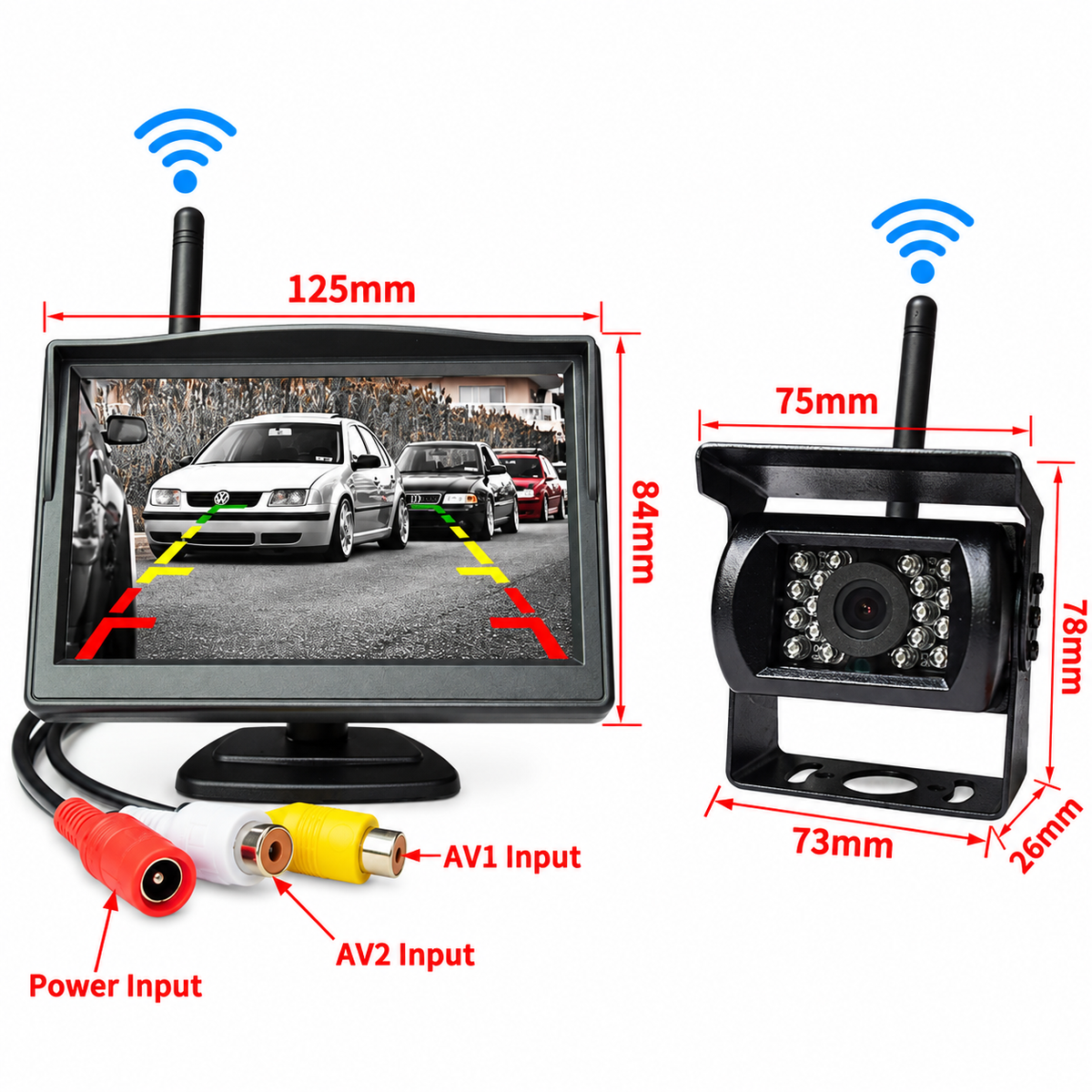

Monitor Size：125 × 84 × 12mm

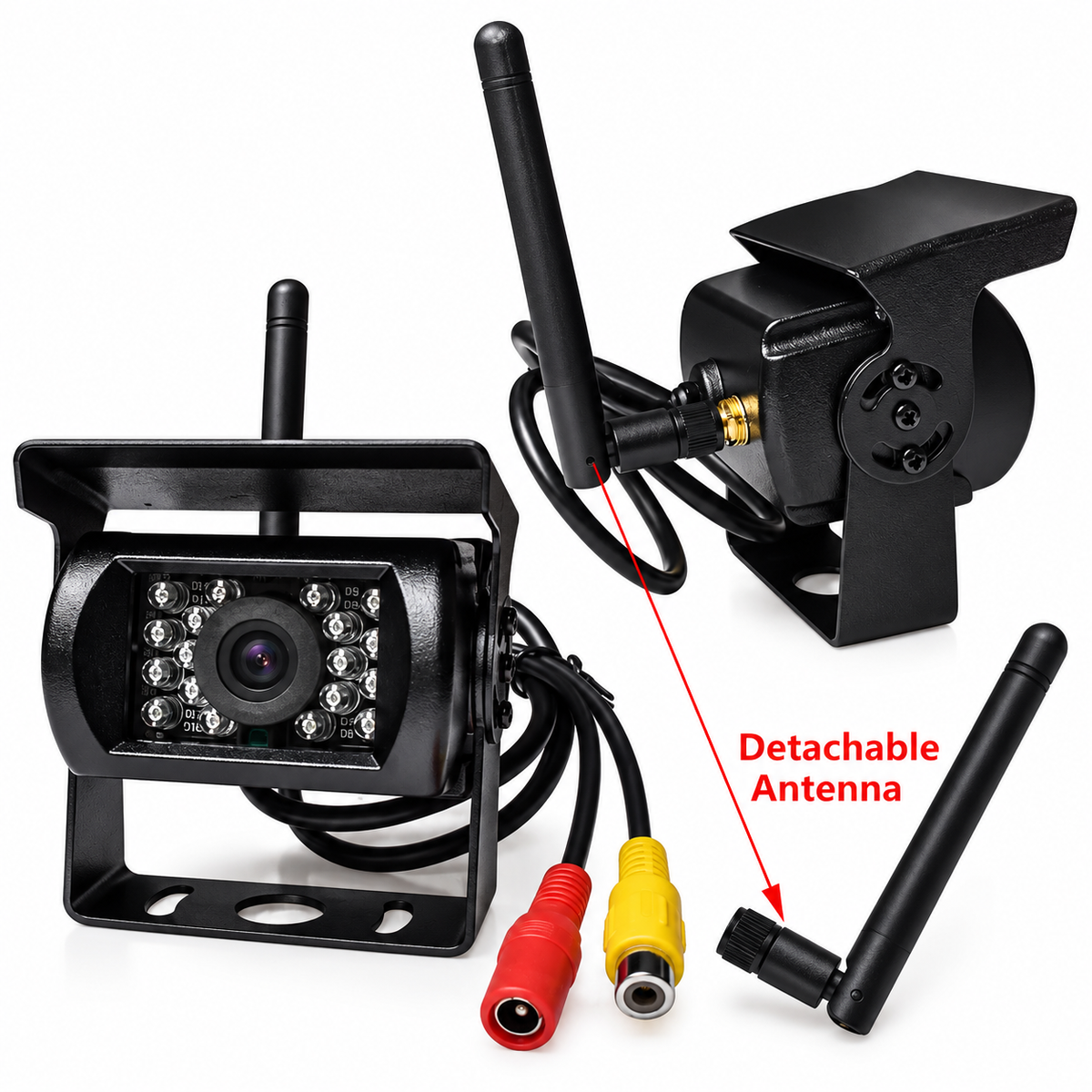

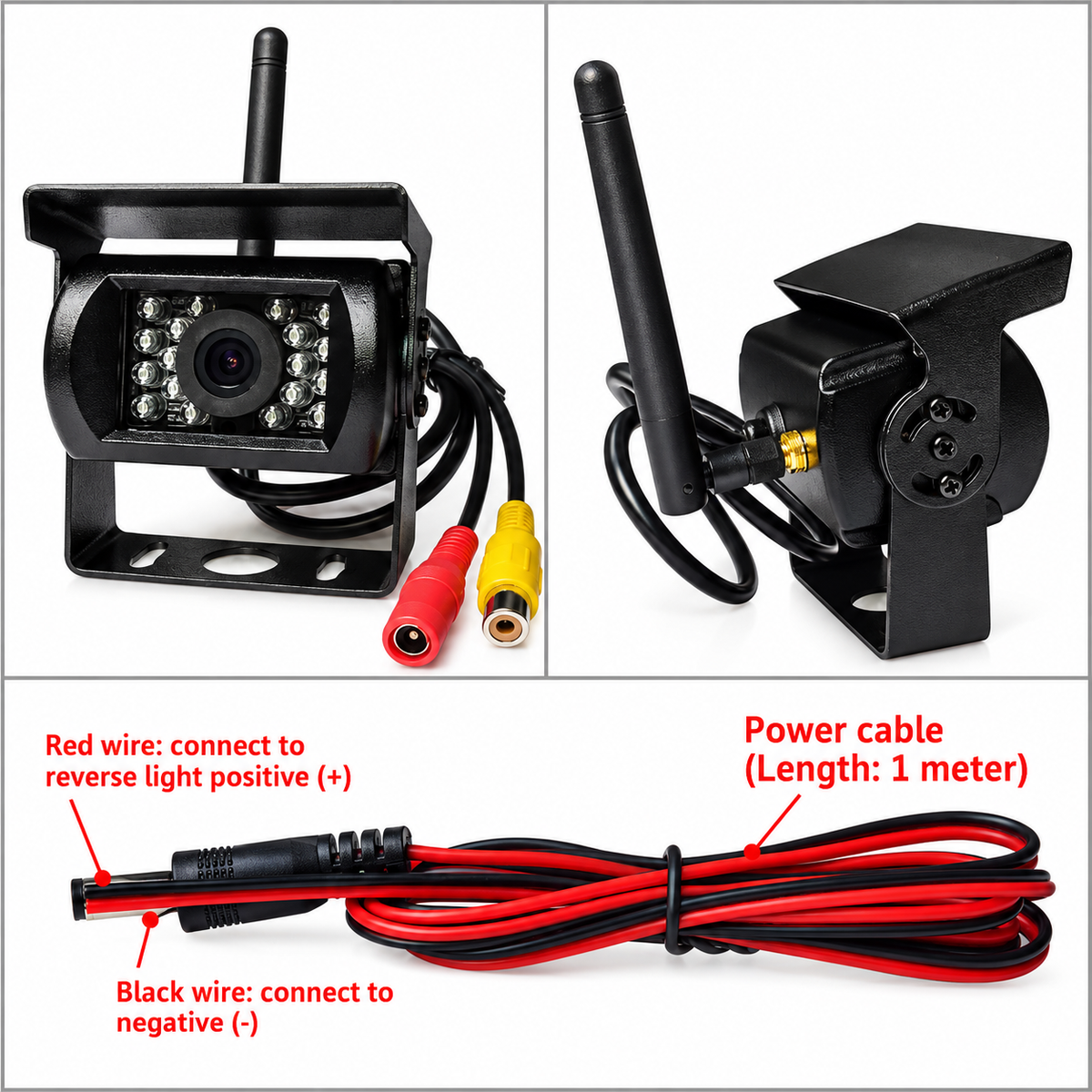

Wireless Camera Specifications
Specification：Details
Camera Type：Wireless Bus Camera
Video Cable：420 Video Cable
Wireless Frequency    2.4GHz
Transmission Range：Approx. 100m in open air
Operating Voltage：12V–35V
Current Consumption：≤300mA
Infrared LEDs：18 LEDs
